Volkswagen ID.4: Adjusting power front seats

The electric controls differ depending on the country and vehicle equipment and may vary according to the seat design.

The controls on the front passenger seat are a mirror image of those for the driver seat.

A seat may have both manual and power controls.

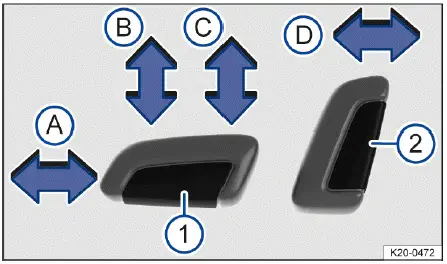

Fig. 1 Switch on the driver seat: Adjusting the front seat forward/back, the height and angle of the seat surface, and the front seat backrest.

Press the switch in the direction of the arrow:

1.

1. Slide the seat forward or backward.
2. Adjust the angle of the seat surface.
3. Adjust the height of the seat.

2.

4. Adjust the angle of the backrest.

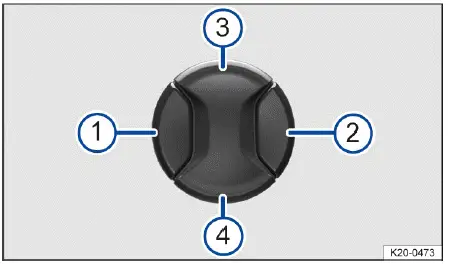

Fig. 2 Switch on the driver seat: Adjusting the lumbar support.

Press the switch in the direction you would like the lumbar support to move.

1. Move the curvature of the lumbar support forward.
2. Move the curvature of the lumbar support backward.
3. Raise the curvature of the lumbar support.
4. Move the curvature of the lumbar support down.

WARNING

Careless or unintended use of the power front seats can cause serious injuries.

• The power front seats can also be adjusted when the ignition is switched off. Never leave children or people requiring assistance in the vehicle.
• In case of an emergency, interrupt the power adjustment by pressing another switch.

NOTICE

Incorrect usage may damage the electric components in the front seats.

• Do not kneel on the front seats and do not otherwise concentrate pressure on specific points of the seat cushion and backrest.

If the 12 V vehicle battery charge level is too low, the seat may not be able to be adjusted with the power controls.

Seat adjustments will be canceled while the vehicle's drive system is being activated.

Introduction

The following information describes the various options for adjusting the rear seats. Always make sure the seats are adjusted to the correct position (→ Seating position).

WARNING

Incorrectly positioned rear seats increase the risk of serious injuries if an accident occurs.

• Before every journey, ensure that the rear seats are positioned so that all passengers are sitting upright and have their safety belts on correctly.
• Only adjust the rear seats when there is no one within the range of movement of the seats.

WARNING

If you adjust the rear seats while driving, you will adopt the wrong sitting position. In addition, the rear seats may move unexpectedly during the journey. This will increase the risk of serious injuries if an accident occurs.

• Only adjust the rear seats when the vehicle is stationary.

WARNING

Incorrect use of the rear center armrest may cause serious injuries.

• The rear center armrest must always be folded up during journeys.
• If the center armrest is folded down, the center rear bench seat must never be used by either adults or children.
• Never allow an adult or child to ride on the center armrest.

NOTICE

Objects in the luggage compartment may get into the space between the seat and the luggage compartment floor when the rear seat is adjusted. This may cause damage.

• Remove all objects located between the seat and luggage compartment floor before you move the rear seat.

NOTICE

Objects with sharp edges can damage the seats.

• Never touch the seats with sharp-edged objects. Sharp-edged objects, such as zippers, rivets on clothing, or belts, can cause surface damage. Open hook and loop fasteners can also cause damage.
