Volkswagen ID.4: Air conditioner compressor, R744

Volkswagen ID.4 (E21) 2021-2025 Service Manual / Heating, air conditioning system / Air conditioning system / Air conditioner compressor, R744

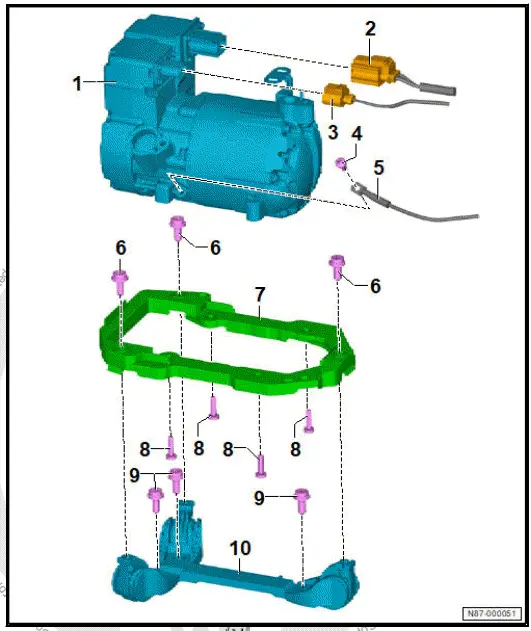

Assembly overview - air conditioner compressor

  1. Air conditioner compressor - VX81-
  • ⇒ Rep. gr. 87 ; Removing and installing air conditioner compressor [VX81]
  1. Electrical connector for high-voltage system
  • ⇒ Electric drive motor; Rep. gr. 93 ; High-voltage cables; Overview of fitting locations - high-voltage cables
  1. Electrical connector
  2. Bolt
  • 8 Nm
  1. Potential equalisation line
  • Electric drive motor; Rep. gr. 93 ; Potential equalisation lines; Overview of fitting locations - potential equalisation lines
  1. Bolt
  • Qty. 3
  • 20 Nm
  1. Retainer
  • Rep. gr. 87 ; Detaching and attaching air conditioner compressor at bracket
  1. Bolt
  • Qty. 4
  • 8 Nm
  1. Bolt
  • Qty. 3
  • 20 Nm
  1. Retainer
  • ⇒ Rep. gr. 87 ; Detaching and attaching air conditioner compressor at bracket

Volkswagen ID.4. Assembly overview - air conditioner compressor

Detaching and attaching refrigerant lines at air conditioner compressor

Special tools and workshop equipment required

  • engine bung set - VAS 6122-

Detaching

Seal open lines and connections immediately with clean plugs from engine bung set - VAS 6122- .

  • Perform function "Opening electrically actuated valves in refrigerant circuit for extracting, evacuating and charging" with ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Starting diagnosis .
  • ⇒ Air conditioners with refrigerant R744 - General information; Rep. gr. 87 ; Working with the air conditioner service station; Discharging refrigerant circuit .
  • Remove vibration isolation strut ⇒ General body repairs, exterior; Rep. gr. 50 ; Lock carrier; Removing and installing vibration isolation strut .
  • Release retaining tab -3-.
  • Take out cover -2-.
  • Take cover -1- out of guide.

Volkswagen ID.4. Detaching and attaching refrigerant lines at air conditioner compressor

  • Unplug electrical connector -1- on refrigerant pressure and temperature sender - G395- -2-.

Volkswagen ID.4. Detaching and attaching refrigerant lines at air conditioner compressor

CAUTION

Risk of frostbite from escaping pressurised refrigerant Risk of frostbite on skin and other parts of the body

  • Put on protective gloves.
  • Put on safety goggles.
  • Extract/drain refrigerant and then immediately open up refrigerant circuit.
  • Extract/drain refrigerant again if more than 10 minutes have passed since initial extraction and refrigerant circuit has not been opened up. Renewed evaporation has created pressure in the refrigerant circuit.

NOTICE

Danger of irreparable damage to refrigerant lines if the inside film is torn.

  • Never bend refrigerant lines to a radius smaller than r = 100 mm.

Volkswagen ID.4. Detaching and attaching refrigerant lines at air conditioner compressor

  • Remove bolts -3- and detach refrigerant lines -2-.

Attaching

Installation is carried out in reverse order; note the following:

  • Install seals and retaining elements, making sure they are free of oil.
  • Connect refrigerant lines -2- and tighten bolts -3-.

Volkswagen ID.4. Detaching and attaching refrigerant lines at air conditioner compressor

  • Perform function "Opening electrically actuated valves in refrigerant circuit for extracting, evacuating and charging" with ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Starting diagnosis .
  • ⇒ Air conditioners with refrigerant R744 - General information; Rep. gr. 87 ; Working with the air conditioner service station; Charging refrigerant circuit

Tightening torques

  • ⇒ Rep. gr. 87 ; Assembly overview - refrigerant lines

Removing and installing air conditioner compressor [VX81]

Special tools and workshop equipment required

  • engine bung set - VAS 6122-

Removing

Immediately seal open lines and connections with clean plugs from engine bung set - VAS 6122- .

  • Carry out function "Open electrically actuated valves to drain, evacuate or charge refrigerant circuit" using ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Access to diagnoses .
  • ⇒ Air conditioning systems with refrigerant R744 - General notes; Rep. gr. 87 ; Working with air conditioner service station; Draining refrigerant circuit .

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energise the high-voltage system.
  • ⇒ Rep. gr. 93 ; De-energise high-voltage system .
  • Remove air intake box of heater and air conditioning unit ⇒ Rep. gr. 87 ; Removing and installing air intake unit of heater and air conditioning unit .
  • Disconnect electrical connectors -3-, and unclip electrical wires ⇒ Electric drive motor; Rep. gr. 93 ; High-voltage cables; Disconnecting high-voltage connectors .
  • Unclip cable holder -4-.
  • Unscrew bolts -2-.

Volkswagen ID.4. Removing and installing air conditioner compressor [VX81]

  • Unscrew bolt -4-.

CAUTION

Risk of frostbite from escaping pressurised refrigerant Risk of frostbite on skin and other parts of the body

  • Put on protective gloves.
  •  Put on safety goggles.
  • Extract/drain refrigerant and then immediately open up refrigerant circuit.
  • Extract/drain refrigerant again if more than 10 minutes have passed since initial extraction and refrigerant circuit has not been opened up. Renewed evaporation has created pressure in the refrigerant circuit.

Volkswagen ID.4. Removing and installing air conditioner compressor [VX81]

  • Unscrew bolts -3-, and pull off refrigerant lines.
  • Remove air conditioner compressor - VX81- -1-.

If air conditioner compressor needs to be disconnected from bracket:

  • ⇒ Rep. gr. 87 ; Detaching/attaching air conditioner compressor from/to bracket .

Installing

Install in reverse order of removal, observing the following:

When renewing air conditioner compressor:

  • Carry out adaption routine for refrigerant oil capacity, and clean refrigerant circuit, if necessary ⇒ General information - air conditioning systems with refrigerant R744; Rep.

    gr. 87 ; Renewing components .

Continued

  • Install seals and captive fasteners free of oil.

Check contact points of potential equalisation line, and clean them if necessary ⇒ Electrical system; Rep. gr. 97 ; Cleaning contact surfaces .

Important

Contact surfaces must be free of dirt, rust and grease.

  • Connect potential equalisation line, and tighten bolt -4-.

Volkswagen ID.4. Removing and installing air conditioner compressor [VX81]

  • Carry out function "Open electrically actuated valves to drain, evacuate or charge refrigerant circuit" using ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Access to diagnoses .
  • ⇒ Air conditioning systems with refrigerant R744 - General notes; Rep. gr. 87 ; Working with air conditioner service station; Charging refrigerant circuit .

WARNING

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Have a high-voltage technician (HVT) or a high-voltage expert (HVE) re-energise the high-voltage system.
  • ⇒ Rep. gr. 93 ; Re-energising high-voltage system .

After renewal of air conditioner compressor:

  • After charging refrigerant circuit and re-energising high-voltage system, carry out functions "Adapt air conditioning compressor" and "Compressor run-in" using ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Access to diagnoses .

Continued

Tightening torques

  • ⇒ Rep. gr. 87 ; Assembly overview - air conditioner compressor
  • ⇒ Rep. gr. 87 ; Assembly overview - refrigerant lines

Detaching/attaching air conditioner compressor [VX81] from/to bracket

Removing

  • Remove air conditioner compressor - VX81- ⇒ Rep. gr. 87 ; Removing and installing air conditioner compressor [VX81] .
  • Unscrew bolts -2-.
  • Detach air conditioner compressor -3- from bracket -1-.

Volkswagen ID.4. Detaching/attaching air conditioner compressor [VX81] from/to bracket

Installing

Install in the reverse sequence of removal, observing the following:

Tightening torques

  • ⇒ Rep. gr. 87 ; Assembly overview - air conditioner compressor
