Volkswagen ID.4: Attaching a child restraint with ISOFIX or i-Size

Overview of ISOFIX or i-Size child restraint installation

The designation of the ISOFIX or i-Size anchorage points depends on the equipment installed and the country.

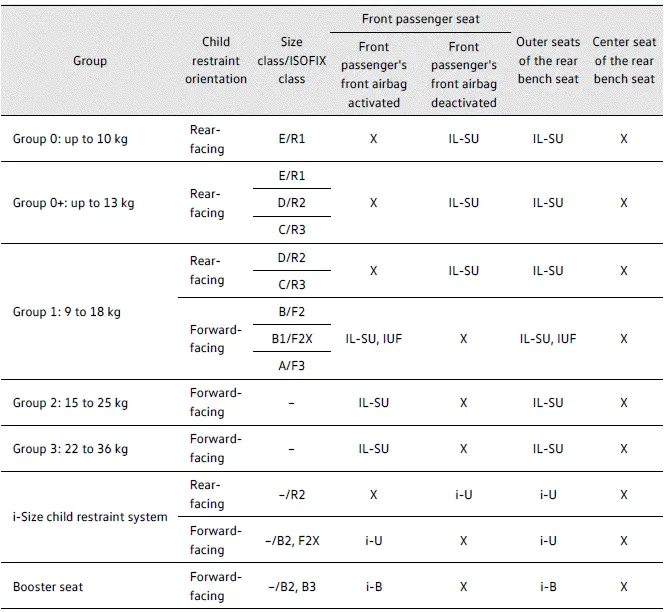

The following table shows the installation options for ISOFIX or i-Size child restraints at the ISOFIX anchorage points at separate locations in the vehicle.

• Size class: the size class specification corresponds to the body weight permitted for the child restraint. For child restraints approved as "universal" or "semi-universal", the size class is specified on the ECE seal of approval. The size class specification is listed on the child restraint.
• X: seating location is not suitable for fastening an ISOFIX or i-Size child restraint classified in this group.
• IL-SU: Suitable seat for installing an ISOFIX child restraint with this "semi-universal" approval. Note the vehicle list provided by the child restraint manufacturer.
• IUF: Suitable seat for installing an ISOFIX child restraint with this "universal" approval.
• i-U: Suitable seat for fitting a forward-facing or backward-facing i-Size child restraint with "universal" approval.
• i-UF: Suitable seat for fitting a forward-facing i-Size child restraint with "universal" approval.
• i-B: suitable seat for the installation of a forward-facing ISOFIX booster seat in Group 2/3 and also for a forward-facing i-Size child restraint for children approx. 100 to 150 cm (3 ft, 3 in to 4 ft, 11 in) tall.

Attaching child restraints with ISOFIX or i-Size

The installation location of the lower anchorage point is indicated either by an ISOFIX or an i-Size symbol.

Designation of the ISOFIX anchorage points for child restraints on the rear bench seat.

Designation of the i-Size anchorage points for child restraints on the rear bench seat and the front passenger seat.

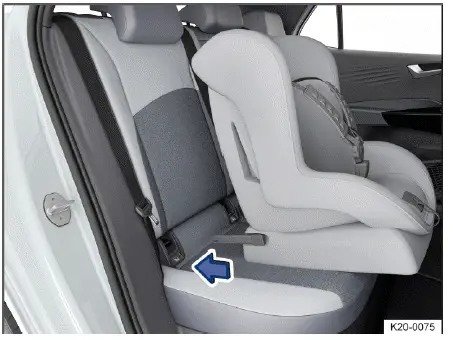

Fig. 1 General example: fitting a child restraint with attachment arms.

1. Pay attention to and follow the information (→ Child restraints).

2. If necessary, fold down the protective caps for the ISOFIX or i-Size anchorage points.

3. Push the child restraint arms in the direction of the arrow and onto the ISOFIX or i-Size anchor points→ fig. 1.

The child restraint must engage securely and audibly.

4. Pull on both sides of the child restraint to check that the child restraint is securely locked in place.
