Volkswagen ID.4: Changing the camera perspective

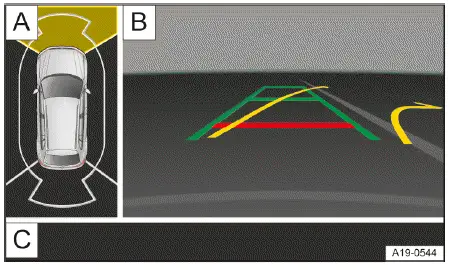

Fig. 1 Infotainment system: Area View in the "Front angled parking" mode (general example).

1. Bird's eye view with selectable sections of the screen.
2. Camera image.
3. Area for the function keys of Area View.

Switching between camera images

1. Tap the function keys on the image border to select a display→ fig. 1 C.

Sections of the screen

Two sections of the screen will be shown in the Infotainment system→ fig. 1 :

Left screen A

The vehicle is displayed from a bird's-eye view. By tapping on one section, the display changes to the right section of the screen.

Right screen B

Depending on the section selected on the left screen, separate camera images will be displayed.

Screen display

Front perpendicular parking.

Rear perpendicular parking.

Front cross traffic.

Rear cross traffic.

Switch to trailer or off-road support (depending on the country).

Introduction

Park Assist (Park Assist Plus) detects a suitable parking space and automatically maneuvers the vehicle during the parking process.

The availability of Park Assist Plus depends on the vehicle equipment.

System function

Park Assist Plus steers, controls the gears and accelerates and brakes the vehicle→ , → .

Available functions

• Display suitable parking spaces.
• Select or change the parking scenario.
• Driving into a suitable parallel parking space or parking bay.
• Parking maneuver to exit a suitable parallel parking space. Perpendicular parking spaces are not supported.

The driver should continuously monitor the area surrounding the vehicle→ .

Automatic braking support may intervene if there are obstacles in the vehicle's path or in dangerous situations.

Automatic, hands-free parking with Park Assist Plus may be prohibited or limited in some regions. Use Park Assist Plus only where permitted by legal provisions.

Driving with a trailer

Park Assist Plus cannot be activated if a trailer is connected to the electrical system.

If the trailer hitch was not installed at the factory, Park Assist Plus must be manually deactivated when towing a trailer.

WARNING

Park Assist Plus is not a replacement for the driver's attention and works only within the system limitations. Park Assist Plus cannot detect all driving situations and may not react, or may react with a delay, or may react in a way that is not desired. If you are careless, there is a risk of accidents, serious injuries and death.

• Always stay attentive and do not rely solely on the system. The driver is always responsible for control of the vehicle.
• Only drive the vehicle into the parking space if you possess a valid driving license.
• Abide by the traffic regulations in the relevant country.
• Do not leave the driver seat during the parking process.
• Pay close attention to the parking process and the traffic.
• Activate the turn signal yourself.
• In a hazardous situation, apply the brakes using the brake pedal.
• Do not park in parking spaces which do not have structural boundaries, e.g. near the water's edge or near inclines with no structural separation.

WARNING

The system only has limited reactions to quickly changing environmental conditions. This can result in collisions with other road users, damage to the vehicle and serious or fatal injuries.

• Do not use Park Assist Plus in flowing traffic at speeds of more than 80 km/h( 50 mph).
• Always maintain a distance of at least one vehicle's length from junctions.
• Do not park on the opposite side of the road or across several lanes.

WARNING

During automatic parking, the vehicle may swing out or turn into oncoming traffic. Accidents and serious or fatal injuries could result.

• Pay close attention to the parking process and the traffic and brake the vehicle if necessary.

WARNING

If the road is icy, the parking process cannot be properly carried out and the vehicle may slide away. This could lead to accidents and damage to the vehicle.

• Do not use Park Assist Plus to park on slippery or icy roads.

NOTICE

Park Assist Plus may suggest parking spaces that are not suitable for the parking process due to the absence of a boundary or presence of intrusive adjacent objects. This can result in vehicle damage.

• Do not park next to overhanging objects, e.g. cargo bays, parked trailers, or beneath hanging objects.
• Pay particular attention to the parking process in parking garages if the parking space is bordered by pillars.

Park Assist Plus may not be available in some regions of the same country.

• Pay attention to the display in the Infotainment system.
