Volkswagen ID.4: Charging cable for charging stations with alternating current (AC)

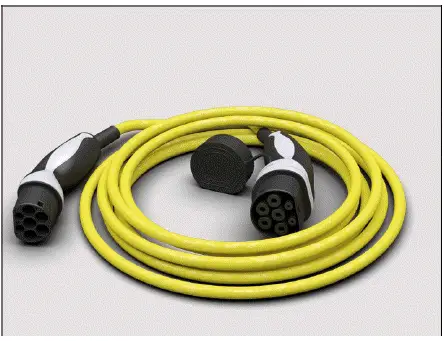

Fig. 1 Charging cable for charging stations with alternating current (AC).

The maximum charging current is 16 A or 32 A and is dependent on the infrastructure used, the charging cable and the equipment of the battery charger.

NOTICE

Improper use of the charging station could damage the high-voltage system of the vehicle.

• Observe the manufacturer's instructions and information when operating the charging station.

The charging cable is not suitable for use as an extension cable.

Electrical installation may be carried out according to different technical rules in countries other than your own.

Therefore, a charging cable with a wire size of 5 x 6 mm2 may be required locally to achieve the maximum available charging power.

Charging with a 16 A charging cable is not possible at charging stations that support 32 A charging. It all depends on the charging station equipment.

• Before charging, find out about the charging technology provided.
