Volkswagen ID.4: Luggage net

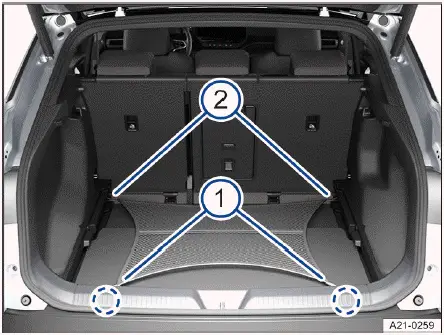

Fig. 1 In the luggage compartment: Level hanging luggage net (general example).

1. Rear tie-downs.
2. Front tie-downs.

The luggage net can help to prevent light objects from sliding around in the luggage compartment. The luggage net contains a pocket with a hook-and-loop fastener for storing small objects.

Attaching the luggage net in a flat position on the luggage compartment floor

1. Attach the luggage net hooks to the tie-downs → fig. 1 -2- → .

The zipper on the luggage net must face upward.

2. Attach the hooks on the other end of the luggage net to the tie-downs under the loading edge→ fig. 1 -1-.

You may need to fold out the tie-downs to use them (→ Tie-downs).

Removing the luggage net

The luggage net is under tension when it is installed→ .

1. Unhook the hooks of the luggage net.

2. Store the luggage net in the luggage compartment.

WARNING

An elastic luggage net needs to be stretched for securing to the tie-downs, which means that it is held under tension. If an elastic luggage net slips off and springs back toward your body, the hooks attached to them may cause serious injuries.

• Protect your eyes and face when securing and releasing the straps.
• Always hold on to the hooks of the luggage net to prevent them springing out of the tie-down when hooking and unhooking them.
• Always secure the hooks of the luggage net in the order described so that, if the luggage net does snap off, it does so away from your body.

WARNING

If used improperly, the luggage net hooks could break during a braking maneuver or in the event of an accident. This could result in objects being thrown through the vehicle interior and causing serious or fatal injuries.

• Only use the luggage net hooks to secure a luggage net.
• Never secure a child restraint to the luggage net hooks.
