Volkswagen ID.4: Raising the vehicle with the vehicle jack

Lift points

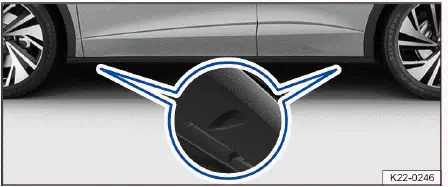

Fig. 1 Mounting points for the vehicle jack.

The vehicle jack must only be positioned at the reinforced areas on the underbody that are located behind the markings on the vehicle body → fig. 1. Always use the lift point that is nearest to the wheel you are changing→ .

Positioning the vehicle jack

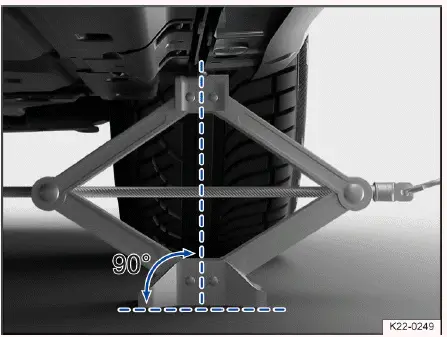

Fig. 2 Correct jack setup.

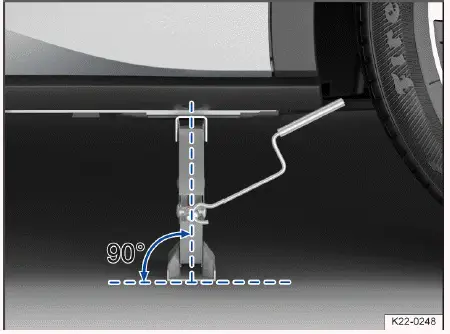

Fig. 3 Jack is positioned on the left side of the vehicle at the rear.

Checklist

For your own safety, follow the points below in the order they are given→ :

1. Position the hand crank in the mount on the jack.

2. Find the vehicle lift point → fig. 1 under the vehicle that is closest to the wheel you will be changing.

3. Crank the jack upward so that it is still positioned under the vehicle lift point.

4. Make sure the entire base of the jack is seated securely on the ground and that the base of the jack is located exactly directly below the lift point → fig. 2 and → fig. 3.

5. Straighten the jack and continue cranking the claw on the top of the jack upward until the claw is positioned on the jacking point under the vehicle → fig. 3.

6. Continue raising the vehicle jack until the wheel is lifted off the ground.

WARNING

Failing to heed this checklist that is provided for your own safety can cause accidents and serious injuries.

• Always follow the tasks in the checklist.
• Observe the general safety precautions.

WARNING

Using the vehicle jack incorrectly can result in the vehicle slipping from the jack and cause serious or fatal injuries.

• Never raise the vehicle if more than one tire is damaged.
• Only place the vehicle jack at the lift points described. The bracket on the vehicle jack must firmly grip the sill → fig. 3.
• Only use jacks that are approved by Volkswagen for the vehicle. Other vehicle jacks, including those approved for other Volkswagen models, could slip.
• Only jack up the vehicle on level, firm ground. Sloped or soft ground can cause the vehicle to slip off the jack. If necessary, place a large, stable surface under the jack.
• If you are on a slippery surface such as tile, place a non-slippery object such as a rubber mat on the ground to prevent the jack from slipping.
• Never place any part of your body, such as your arm, under the vehicle when it is supported only by the jack. If you must work underneath the vehicle, additionally support the vehicle securely with suitable stands.
