Volkswagen ID.4: Removing and installing the head restraints

Removing the front head restraints

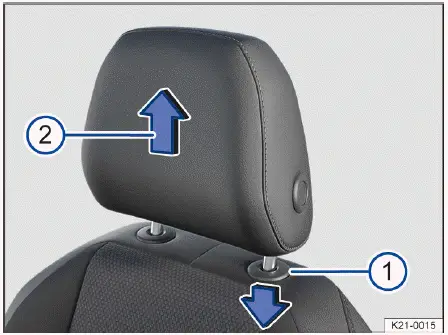

Fig. 1 Removing the front head restraint (general example).

1. Lower the head restraint if necessary.

2. To unlock, press down the ring around the guide rod of the head restraint→ fig. 1 -1-.

3. Pull out the head restraint in the direction of the arrow→ fig. 1 -2-.

Installing the front head restraints

1. Position the head restraint correctly above the head restraint guides and insert into the guides on the seat backrest.

2. Slide the head restraint downward until it engages into the guide rods.

3. Adjust the head restraint to the correct position.

Removing the rear head restraint

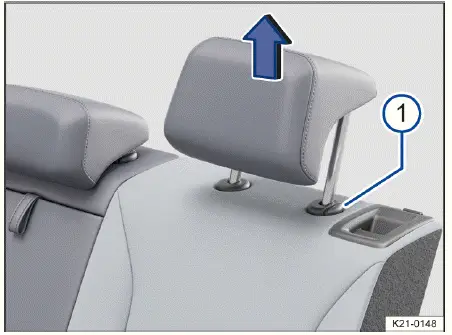

Fig. 2 Removing the rear head restraint (general example).

1. If necessary, adjust the seat backrest so that the head restraint can be removed.

2. Slide the head restraint all the way upward.

3. Pull the head restraint all the way out while pressing the→ fig. 2 -1- button.

Installing the rear head restraint

1. Release the backrest of the rear bench seat and fold slightly forwards.

2. Position the head restraint correctly above the head restraint guides and insert into the guides on the seat backrest.

3. Push the head restraint downward while pressing the→ fig. 2 -1- button.

4. Fold the rear bench seat backrest toward the rear and lock it securely into place.

5. Adjust the head restraint to the correct position.
