Volkswagen ID.4: Child seat anchors

Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, interior / Passenger protection / Child seat anchors

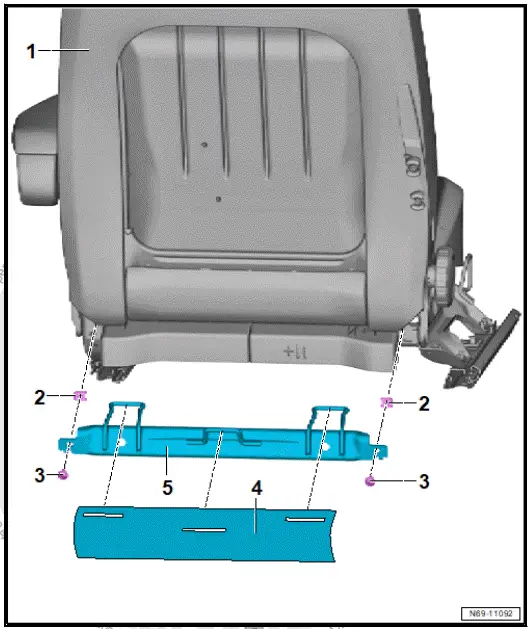

Assembly overview  front child seat anchors

  1. Front passenger seat
  2. Speed nut
  • Inserted into seat pan.
  • Qty. 2
  • Renew after removing
  1. Bolt
  • Qty. 2
  • Renew after removing
  • 8 Nm
  1. Top tether fabric cover
  2. Front child seat anchor
  • Fitted on front passenger seat
  • ⇒ Rep. gr. 69 ; Removing and installing front child seat anchors

Volkswagen ID.4. Assembly overview  front child seat anchors

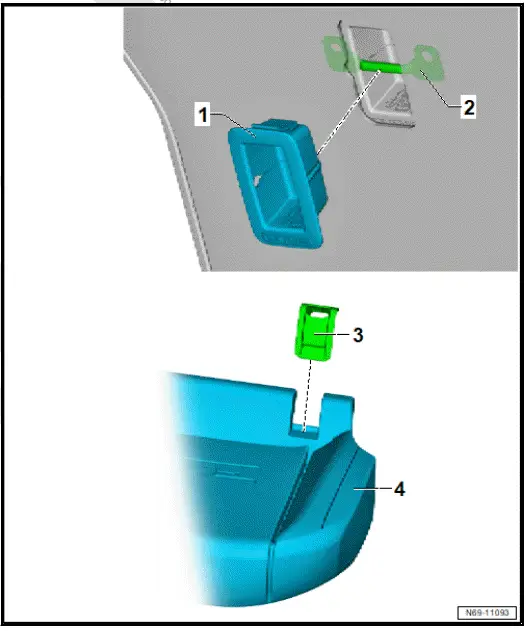

Assembly overview - rear child seat anchors

  1. Child seat anchor cover in rear seat backrest
  • Qty. 2
  • ⇒ Rep. gr. 72 ; Removing and installing back panel trim
  1. Upper child seat anchor
  • Cannot be replaced individually
  • Qty. 2
  1. Child seat anchor guide in bench seat
  • Qty. 4
  • ⇒ Rep. gr. 74 ; Removing and installing cover and padding of rear bench seat
  1. Bench seat
  • ⇒ Rep. gr. 72 ; Assembly overview - bench seat/individual seats
  • ⇒ Rep. gr. 72 ; Removing and installing bench seat/individual seats

Volkswagen ID.4. Assembly overview - rear child seat anchors

Removing and installing front child seat anchors

Removing

  • Remove front passenger seat ⇒ Rep. gr. 72 ; Removing and installing front seat .
  • Remove inner seat trim ⇒ Rep. gr. 72 ; Removing and installing inner seat trim .
  • Remove outer seat trim ⇒ Rep. gr. 72 ; Removing and installing outer seat trim .
  • Unscrew bolts -arrows-.
  • Pull "top tether" fabric cover off front child seat anchor -1-.

    To do this, detach beading at top and bottom.

  • Detach front child seat anchor -1- towards rear.

Volkswagen ID.4. Removing and installing front child seat anchors

Installing

Install in reverse order of removal, observing the following:

Tightening torques

  • ⇒ Rep. gr. 69 ; Assembly overview - front child seat anchors
