Volkswagen ID.4: Dimensions and mounting points for retrofitting a trailer hitch

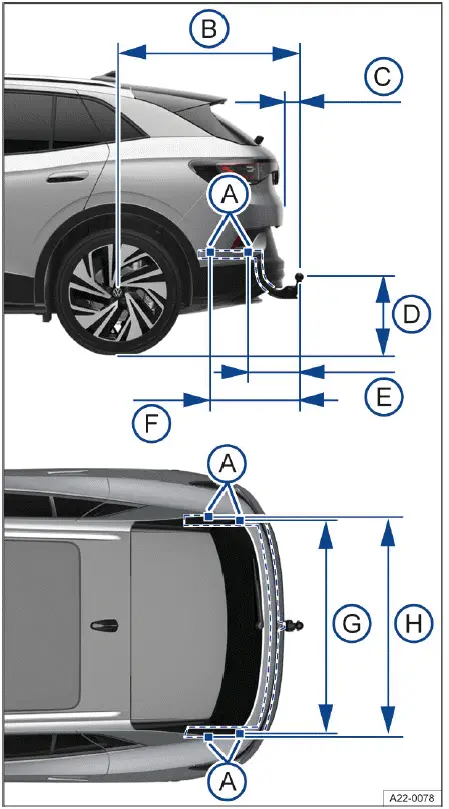

Fig. 1 Dimensions and mounting points for retrofitting a trailer hitch.

The correct dimensions → fig. 1 must always be used when retrofitting a trailer hitch. The value must not fall short of or exceed the smaller specified dimension from the center of the ball mount to the road surface D. This also applies when the vehicle is fully loaded including the maximum tongue weight.

1. Mounting points.
2. 1045 mm (approx. 41.1 in)
3. Min. 65 mm (approx. 2.6 in)
4. 350 to 420 mm (approx. 13.8 to 16.5 in)
5. 357 mm (approx. 14 in)
6. 577 mm (approx. 22.7 in)
7. 994 mm (approx. 39.1 in)
8. 998 mm (approx. 39.3 in)

Volkswagen recommends having a trailer hitch retrofitted by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. For example, modifications to the cooling system or the installation of heat shields may be necessary. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Mount the trailer hitch in accordance with the instructions supplied.

A retrofitted, non-removable trailer hitch must not cover the label or the lighting system on the rear of the vehicle.

Note the country-specific regulations for using a ball mount.

Depending on the country, the vehicle may not be approved for trailer towing due to legal and technical requirements.

If this is the case, no trailer hitch may be retrofitted.

Please contact suitably qualified professionals if you have any questions about retrofitting a trailer hitch. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

WARNING

Improperly or incorrectly connected electrical wires can lead to malfunctions in the entire vehicle electrical system as well as accidents and serious injuries or death.

• Never connect the electrical system on a trailer directly to the electrical connectors for the taillights or other unsuitable power sources.
• Only use suitable connectors to connect the trailer.
• If retrofitting the vehicle with a trailer hitch, have the work performed by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

WARNING

Incorrect mounting or the use of an unsuitable trailer hitch can lead to the trailer becoming detached from the towing vehicle during the journey, potentially causing accidents and serious injuries or death.

• Only have work on your trailer hitch or the retrofitting of a trailer hitch carried out by an authorized Volkswagen dealer or authorized Volkswagen service facility. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Only use trailer hitches that are provided for the vehicle model, model year and vehicle equipment by the corresponding manufacturer.

Volkswagen recommends the use of Volkswagen original parts or Volkswagen original accessories, which you can acquire from an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Troubleshooting

Ball mount of the trailer hitch not secured

The yellow indicator light turns on.

1. Do not use towing bracket. Check towing bracket catch (→ Electric ball mount).

2. If the problem persists, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
