Volkswagen ID.4: Front airbag, driver side

Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, interior / Passenger protection / Front airbag, driver side

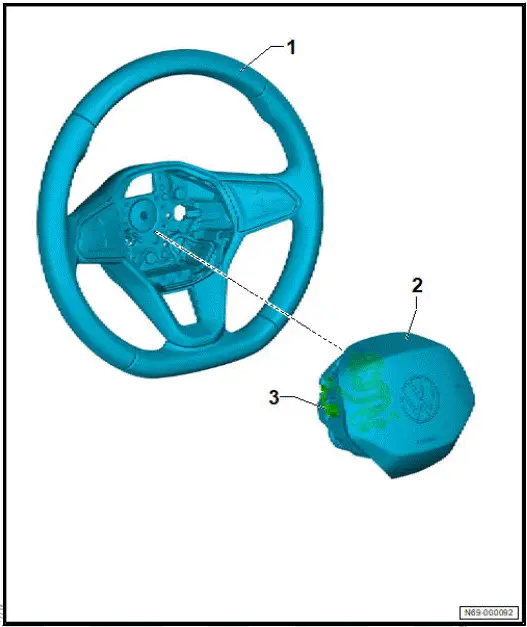

Assembly overview - front airbag, driver side

  1. Steering wheel
  • ⇒ Running gear, axles, steering; Rep.

    gr. 48 ; Steering wheel; Removing and installing steering wheel

  1. Airbag unit
  • With driver side airbag igniter - N95- .
  • ⇒ Rep. gr. 69 ; Removing and installing airbag unit with airbag igniter on driver side [N95]
  1. Wire
  • ⇒ Rep. gr. 69 ; Renewing connector on airbag

Volkswagen ID.4. Assembly overview - front airbag, driver side

Removing and installing airbag unit with igniter

Special tools and workshop equipment required

  • release tool - T10610-

Airbag unit with airbag igniter on driver side - N95- is referred to hereafter as airbag unit.

Removing

  • Deactivate vehicle's drive system.
  • Turn steering wheel 90º from straight-ahead position.

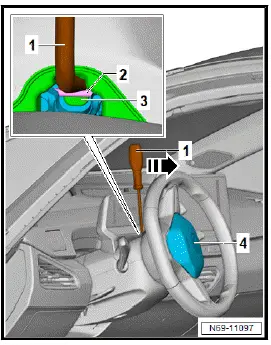

  • Insert release tool - T10610- -1- as far as stop into opening for locking bracket -2-.
  • Pull release tool - T10610- -1- in direction of -arrow- and release locking bracket -2-.

Volkswagen ID.4. Special tools and workshop equipment required

  • Turn steering wheel 180º.
  • Repeat release procedure.
  • Apply light pressure onto airbag unit in order to relieve tension from locking bracket.
  • Bring steering wheel to straight-ahead position.
  • Disconnect battery earth cable ⇒ Electrical system; Rep.

    gr. 27 ; Battery; Disconnecting and connecting battery .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

  • Discharge static electricity by briefly touching door striker plate.

Volkswagen ID.4. Removing and installing airbag unit with igniter

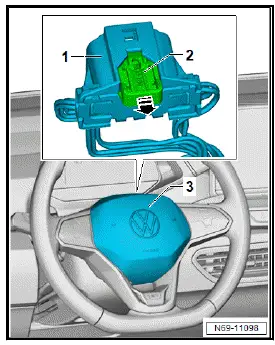

  • Detach airbag unit -3- to gain access to electrical connector -1-.
  • Pull out connector lock -2- in direction of -arrow-, press it down, and disconnect electrical connector -1-.

Installing

Install in reverse order of removal, observing the following:

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

  • Discharge static electricity by briefly touching door striker plate.
  • Ft electrical connector, and push it in until it audibly engages.
  • Secure electrical connector on backside of airbag unit.
  • Make sure that no wires are trapped.
  • Bring steering wheel to straight-ahead position.

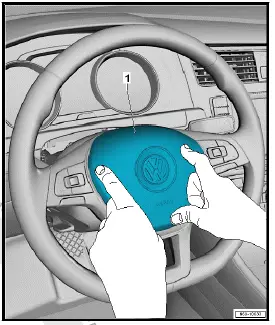

  • Position airbag unit -1- in steering wheel and press on edge with both hands simultaneously until it audibly engages.
  • Connect battery earth cable ⇒ Electrical system; Rep.

    gr. 27 ; Battery; Disconnecting and connecting battery .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

  • Stay as far back as possible from pyrotechnic components when switching on the ignition.
  • Switch on ignition.
  • Read and clear event memory using ⇒ Vehicle diagnostic tester.

Volkswagen ID.4. Removing and installing airbag unit with igniter

Renewing connector on airbag

Removing

The airbag unit with airbag igniter on driver side - N95- will henceforth be referred to as "airbag unit with igniter".

  • Remove airbag unit with igniter ⇒ Rep. gr. 69 ; Removing and installing airbag unit with airbag igniter on driver side [N95] .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

  • Discharge static electricity by briefly touching door striker plate.
  • Unhook electrical wire -1- from retainers on airbag -2-.

Volkswagen ID.4. Renewing connector on airbag

  • Release connector lock -2- in direction of -arrow-.
  • Disconnect electrical connector -1-.

Volkswagen ID.4. Renewing connector on airbag

  • Detach electrical wire.

Installing

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

  • Discharge static electricity by briefly touching door striker plate.
  • Connect electrical connector -1- for airbag unit with igniter in direction of -arrow A-.
  • Press in connector lock -2- in direction of -arrow B-.

Continue installation in reverse order of removal, observing the following:

  • Connect electrical connectors until they engage audibly.

Volkswagen ID.4. Renewing connector on airbag
