Volkswagen ID.4: Interior mirror

Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, interior / Interior equipment / Interior mirror

Assembly overview - interior mirror

  1. Retaining plate for interior mirror
  • To be renewed with windscreen only
  • ⇒ General body repairs, exterior; Rep.

    gr. 64 ; Windscreen; Removing and installing windscreen

  1. Rain and light sensor - G397-
  • ⇒ Electrical system; Rep. gr. 92 ; Windscreen wiper system; Removing and installing rain and light sensor [G397]
  1. Bolt
  • Qty. 2
  • 1.5 Nm
  1. Spring clip
  • Renew after removing
  1. Interior mirror
  • ⇒ Rep. gr. 68 ; Removing and installing interior mirror
  1. Lower cover
  2. Upper cover

 Removing and installing interior mirror

Removing

  • Unclip lower cover -1- in rear area at every side in direction of -arrow A- using commercially available plastic wedge -2-.
  • Remove lower cover -1- in direction of -arrow B-.

Volkswagen ID.4.  Removing and installing interior mirror

  • Remove upper cover -1- in direction of -arrow-.

Volkswagen ID.4.  Removing and installing interior mirror

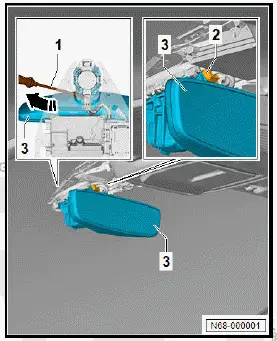

  • Disconnect electrical connector -2-.
  • Insert screwdriver -1- into gap.
  • Turn interior mirror -3- at mirror base approx. 20º in direction of -arrow-, and pull it off downwards.

Volkswagen ID.4.  Removing and installing interior mirror

Installing

Reusing interior mirror

  • Unscrew bolts -1-.
  • Renew spring clip -2-.
  • Screw in bolts -1- and tighten them.

Volkswagen ID.4. Reusing interior mirror

All vehicles (continued)

  • Make sure that the interior mirror is aligned parallel with the retaining plate.
  • Fit interior mirror, turned in anti-clockwise direction, onto retaining plate.
  • Turn interior mirror clockwise until it can be heard to engage.

Tightening torques

Further installation is carried out in reverse order of removal.

Observe the following when doing this:

  • ⇒ Rep. gr. 68 ; Assembly overview - interior mirror
