Volkswagen ID.4: Front centre armrest

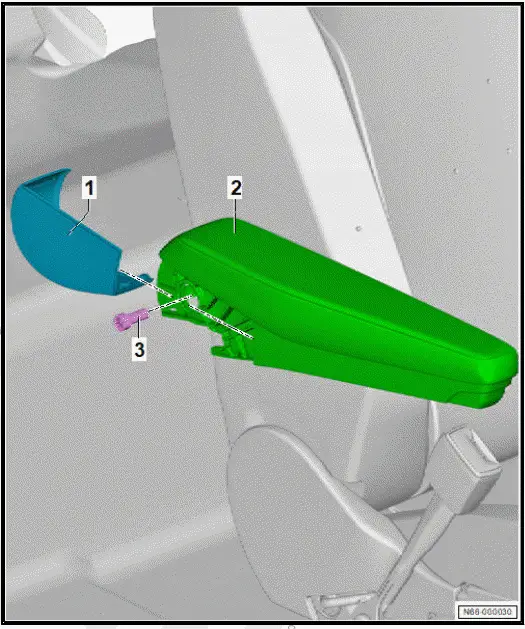

Assembly overview   front centre armrest

The overview is shown for the left side of vehicle as an example.

1. Trim
2. Front centre armrest

• ⇒ Rep. gr. 68 ; Removing and installing front centre armrest

3. Bolt

• 20 Nm

Removing and installing front centre armrest

Removal and installation are described for the left side of vehicle as an example.

Removing

• Using commercially available plastic wedge, unclip trim -1-.
• Unscrew bolt -3-.
• Remove front centre armrest -2-.

Installing

Install in reverse order of removal, observing the following:

• Make sure that the cover is not trapped.

Tightening torques

• ⇒ Rep. gr. 68 ; Assembly overview - front centre armrest
