Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, interior / Interior equipment / Centre console

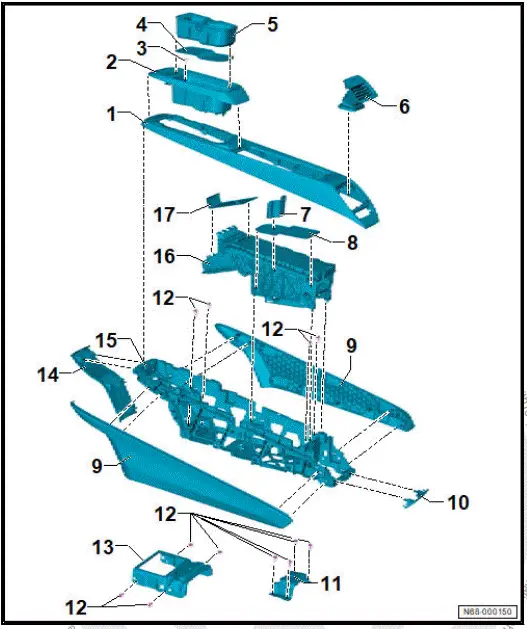

Assembly overview - centre console

Volkswagen ID.4. Assembly overview - centre console

  1. Centre console cover
  •  ⇒ Rep. gr. 68 ; Removing and installing cover for centre console
  1. Centre console insert
  • ⇒ Rep. gr. 68 ; Removing and installing centre console insert
  1. Bolt
  • 2 Nm
  1. Lining mat
  2.  Cup holder
  3. ⇒ Rep. gr. 68 ; Removing and installing cup holders
  4. Rear centre console vent
  • ⇒ Rep. gr. 68 ; Removing and installing vent in rear centre console
  1. Storage compartment insert
  2.  Lining mat
  3.  Centre console side trim
  • ⇒ "4.10 Removing and installing centre console side trim"
  1. Rear centre console trim
  • ⇒ Rep. gr. 68 ; Removing and installing rear centre console trim
  1. Rear centre console bracket
  • ⇒ Rep. gr. 68 ; Removing and installing centre console bracket
  1. Bolt
  • Qty. 12
  •  6 Nm
  1. Front centre console bracket
  • ⇒ Rep. gr. 68 ; Removing and installing centre console bracket
  1. Front centre console trim
  • ⇒ "4.9 Removing and installing front centre console trim"
  1. Centre console
  • ⇒ Rep. gr. 68 ; Removing and installing centre console
  • Rear centre console storage compartment
  • ⇒ Rep. gr. 68 ; Removing and installing rear centre console storage compartment

Removing and installing rear centre console trim

For reasons of clarity, the front seats are not shown in illustration.

Removing

  • Remove centre console cover ⇒ Rep. gr. 68 ; Removing and installing centre console cover .
  • Unclip rear centre console trim -1- using commercially available plastic wedge.

Volkswagen ID.4. Removing and installing rear centre console trim

Installing

Install in reverse order of removal.

Removing and installing centre console cover

For reasons of clarity, the front seats are not shown in illustration.

Removing

  • Remove centre console insert ⇒ Rep. gr. 68 ; Removing and installing centre console insert .
  • Unclip centre console cover -1- in direction of -arrow- using commercially available plastic wedge.
  • Disconnect electrical connectors.

Volkswagen ID.4. Removing and installing centre console cover

Installing

Install in reverse order of removal.

Removing and installing centre console insert

Removing

  • Remove cup holder ⇒ Rep. gr. 68 ; Removing and installing cup holder .
  • Remove lining mat -1-.
  • Unscrew bolt -3-.
  • Unclip centre console insert -2- in direction of -arrow- using commercially available plastic wedge.
  • Disconnect electrical connector.

Volkswagen ID.4. Removing and installing centre console insert

Installing

Install in reverse order of removal.

Removing and installing centre console

For reasons of clarity, the front seats are not shown in illustration.

Removing

  • Remove centre console cover ⇒ Rep. gr. 68 ; Removing and installing centre console cover
  • Remove rear centre console storage compartment ⇒ Rep.

    gr. 68 ; Removing and installing rear centre console storage compartment .

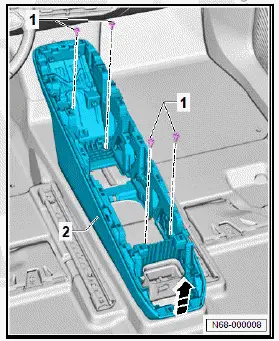

  • Unscrew bolts -1-.
  • Remove centre console -2- in direction of -arrow-.

Volkswagen ID.4. Removing and installing centre console

Installing

Install in reverse order of removal, observing the following:

Tightening torques

  • ⇒ Rep. gr. 68 ; Assembly overview - centre console

Removing and installing cup holder

Removing

  • Unclip cup holder -1- in direction of -arrow- using commercially available plastic wedge.

Volkswagen ID.4. Removing and installing cup holder

Installing

Install in reverse order of removal

Removing and installing rear centre console storage compartment

For reasons of clarity, the front seats are not shown in illustration.

Removing

  • Remove centre console cover ⇒ Rep. gr. 68 ; Removing and installing centre console cover .
  • Remove light 1 for front centre console background lighting - L193- ⇒ Electrical system; Rep. gr. 96 ; Lights; Removing and installing light 1 for front centre console background lighting -L193- .
  • Pull off rear centre console storage compartment -1- in direction of -arrow-.
  • Disconnect electrical connectors.

Volkswagen ID.4. Removing and installing rear centre console storage compartment

Installing

Install in reverse order of removal.

Removing and installing centre console bracket

Removing

  • Remove front seats ⇒ Rep. gr. 72 ; Removing and installing front seat .
  • Remove lower A-pillar trims ⇒ Rep. gr. 70 ; Removing and installing lower A-pillar trim .
  • Remove tunnel support cover ⇒ Rep. gr. 70 ; Removing and installing tunnel support cover .
  • Remove centre console ⇒ Rep. gr. 68 ; Removing and installing centre console .
  • Fold back floor covering in the middle.
  • Unscrew bolts -2- and -3-
  • Remove front centre console bracket -1-.

Volkswagen ID.4. Removing and installing centre console bracket

  • Unscrew bolts -1-.
  • Remove rear centre console bracket -2-.

Volkswagen ID.4. Removing and installing centre console bracket

Installing

Install in reverse order of removal, observing the following:

Tightening torques

  • ⇒ Rep. gr. 68 ; Assembly overview - centre console

Removing and installing front centre console trim

For reasons of clarity, the front seats are not shown in illustration.

Removing

  • Remove centre console cover ⇒ Rep. gr. 68 ; Removing and installing centre console cover .
  • Unclip front trim -1- in direction of -arrow- using commercially available plastic wedge.

Volkswagen ID.4. Removing and installing front centre console trim

Installing

Install in reverse order of removal.

Removing and installing centre console side trim

For a better view, the centre console is not shown in the illustrations of the following work procedures.

Removing

  • Remove centre console ⇒ Rep. gr. 68 ; Removing and installing centre console .
  • Remove front trim ⇒ "4.9 Removing and installing front centre console trim"
  • Remove rear centre console trim ⇒ Rep. gr. 68 ; Removing and installing rear centre console trim .
  • Using commercially available plastic wedge, unclip centre console side trims -1- in direction of -arrow-.

Volkswagen ID.4. Removing and installing centre console side trim

Installing

Install in reverse sequence of removal

Removing and installing rear centre console vent

Special tools and workshop equipment required

  • hook - T10538-

Removing

  • Open rear centre console vent completely.
  • Carefully insert hook - T10538- in rear centre console vent -1-.
  • Pull out rear centre console vent -1- by tugging firmly in direction of -arrow-.
  • Disconnect electrical connector.

Volkswagen ID.4. Removing and installing rear centre console vent

Installing

Install in reverse sequence of removal.
