Volkswagen ID.4: Lock carrier

• Assembly overview - lock carrier
• Removing and installing lock carrier
• Removing and installing lock carrier brace
• Removing and installing lock carrier support
•  Removing and installing headlight mounting

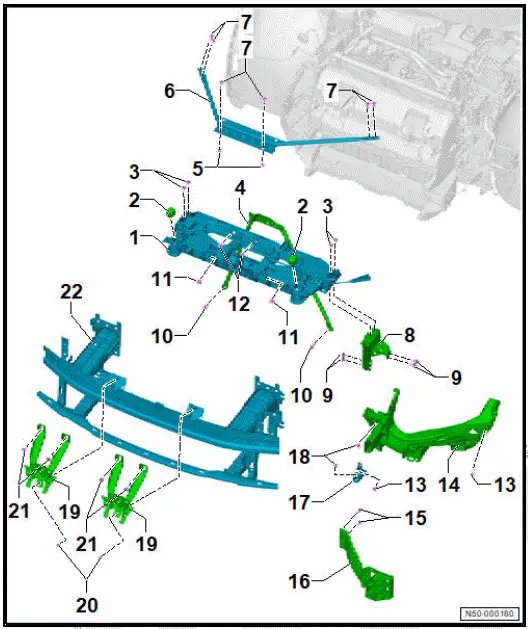

Assembly overview - lock carrier

1. Lock carrier

• ⇒ Rep. gr. 50 ; Removing and installing lock carrier

2. Mounting buffers

• Qty. 2

3. Bolt

• Qty. 4
• 8 Nm

4. Connecting piece

• ⇒ "2.3 Removing and installing lock carrier brace"

5. Washer

• Fitted on selected models
• Fitted depending on equipment/version
• Qty. 2

6. Vibration isolation strut

• ⇒ Rep. gr. 50 ; Removing and installing vibration isolation strut

7. Bolt

• Qty. 6
• 20 Nm

8. Headlight holder carrier

• Left and right
• ⇒ Rep. gr. 50 ; Lock carrier; Headlight holder carrier

9. Bolt

• Fitted on selected models
• Left and right
• Qty. 4
• 30 Nm

10. Bolt

• Qty. 2
• 20 Nm

11. Speed nut

• Qty. 2

12. Bolt

• Qty. 2
• 20 Nm

13. Bolt

• Fitted on selected models
• Left and right
• Qty. 2
• 4.5 Nm

14. Headlight holder carrier

• Fitted on selected models
• Left and right
• ⇒ "2.6 Removing and installing headlight mounting"

15. Bolt

• Fitted on selected models
• Left and right
• Qty. 2
• 8 Nm

16. Actuator, wheel actuator

• Fitted on selected models
• Left and right

17. Mounting

• Fitted on selected models
• Left and right

18. Bolt

• Fitted on selected models
• Left and right
•  Qty. 2
• 4.5 Nm

19. Support for lock carrier

• Qty. 2
• ⇒ Rep. gr. 50 ; Removing and installing lock carrier support

20. Bolt/nut

• Bolt or nut, depending on model
• Qty. 2
• Nut: 12 Nm
• Bolt: 8 Nm

21. Bolt

• Qty. 4
• 8 Nm

22. Bumper carrier

• ⇒ Rep. gr. 63 ; Assembly overview - bumper carrier
• ⇒ Rep. gr. 63 ; Removing and installing bumper carrier

Removing and installing lock carrier

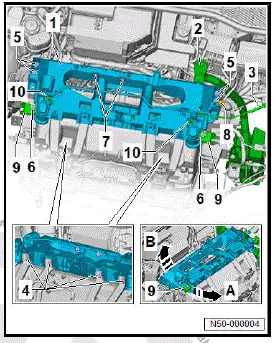

Removing

• Remove bumper cover ⇒ Rep. gr. 63 ; Removing and installing bumper cover .
•  Support bonnet with suitable workshop equipment.
• Remove anti-vibration brace ⇒ Rep. gr. 50 ; Removing and installing anti-vibration brace .
• Remove radiator module bracket -10-.
• Detach filler neck -2- of washer fluid reservoir from lock carrier -1-.
• Detach Bowden cable -3- ⇒ Rep. gr. 55 ; Removing and installing Bowden cable .
• Unscrew bolts -4-, -5-, -6- and -7-.
• Disconnect electrical connector for bonnet contact switch - F266- -8-.
• Swing out lock carrier -1- in direction of -arrow A- from underneath tabs -9-.
• Remove lock carrier -1- in direction of -arrow B-.

Installing

Install in reverse order of removal, observing the following:

• Swing lock carrier -1- in direction of -arrow A- under tabs -2-. When doing this, push radiator module -3- slightly in direction of -arrow B-.

Tightening torques

• ⇒ Rep. gr. 50 ; Assembly overview - lock carrier
• ⇒ Electrical system; Rep. gr. 94 ; Headlights; Assembly overview - headlights

Removing and installing lock carrier brace

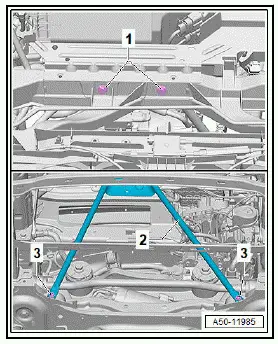

Removing

• Remove front underbody cladding ⇒ General body repairs, exterior; Rep. gr. 66 ; Underbody cladding; Removing and installing front underbody cladding .
• Remove bolts -1- at lock carrier.
• Remove bolts -3-.
• Remove lock carrier brace -2- downwards.

Installing

Installation is carried out in reverse sequence.

Tightening torques

• ⇒ General body repairs, exterior; Rep. gr. 50 ; Lock carrier; Assembly overview - lock carrier

Removing and installing anti-vibration brace

Removing

• Unscrew bolts -2-.
• Remove anti-vibration brace -1-.

Installing

Install in reverse order of removal, observing the following

Tightening torques

• ⇒ Rep. gr. 50 ; Assembly overview - lock carrier

Removing and installing lock carrier support

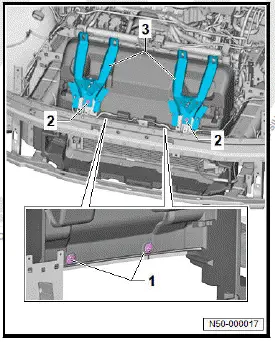

Removing

• Remove lock carrier ⇒ Rep. gr. 50 ; Removing and installing lock carrier .
• Remove bumper carrier ⇒ Rep. gr. 63 ; Assembly overview - bumper carrier .
• Switch off ignition and electrical equipment.
• Place vehicle key and other entry and start authorisation devices (e.g. smartphone) outside vehicle.
• Disconnect battery earth cable ⇒ Electrical system; Rep. gr. 27 ; Battery; Disconnecting and connecting battery .
• Disconnect electrical connector of crash sensor for front airbag - G190- and front airbag crash sensor for front passenger side - G284- .
• Pull off clamping washers -1-.
• Unscrew nuts -2-.
• Remove lock carrier supports -3-.

Installing

Install in reverse order of removal, observing the following:

• Connect battery earth cable ⇒ Electrical system; Rep. gr. 27 ; Battery; Disconnecting and connecting battery .
• Switch on ignition.
• Read and clear event memory using ⇒ Vehicle diagnostic tester.

Vehicles with front overhead view camera - R243-

• ⇒ Driver assist systems; Rep. gr. 98 ; Overhead view camera; Calibrating overhead view camera system .

All vehicles (continued)

Tightening torques

• ⇒ Rep. gr. 50 ; Assembly overview - lock carrier

 Removing and installing headlight mounting

Removing

• Remove headlight ⇒ Electrical system; Rep. gr. 94 ; Headlights; Removing and installing headlights .
• Move breather hose -7- clear at headlight mounting -1-.
• Unscrew bolt -5- and detach mounting -6-.
• Remove bolts -2- and -4-.
• Detach headlight mounting -1- from headlight -3-.

Installing

Installation is carried out in reverse sequence.

Tightening torques

• ⇒ General body repairs, exterior; Rep. gr. 50 ; Lock carrier; Exploded view - lock carrier
• ⇒ Electrical system; Rep. gr. 94 ; Headlights; Exploded view - headlight
