Volkswagen ID.4: Wings

Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, exterior / Body - front / Wings

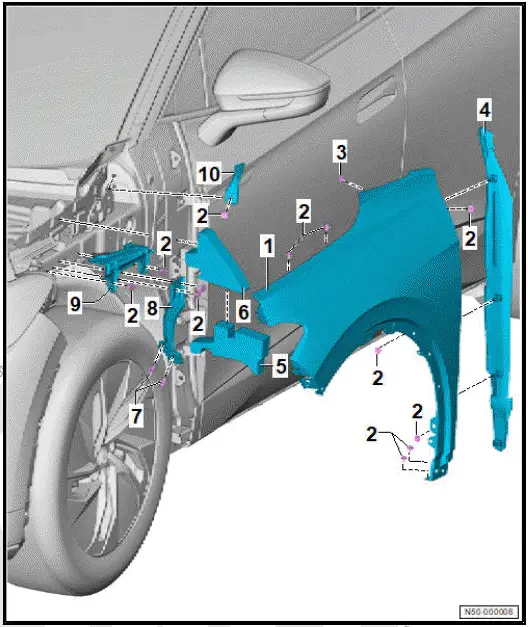

Assembly overview  wing

The overview is shown for the left side of vehicle as an example.

  1. Wings
  • ⇒ Rep. gr. 50 ; Removing and installing wing
  1. Bolt
  • Qty. 12
  • 8 Nm
  1. Bolt
  • 6 Nm
  1. End plate
  • ⇒ Rep. gr. 50 ; Removing and installing end plate
  1. Insulation for wing, lower section
  2. Insulation for wing, upper section
  3. Centre hex stud
  • Qty. 2
  • 8 Nm
  1. Wing bracket
  •  ⇒ Rep. gr. 50 ; Removing and installing wing bracket
  1. Bracket for deformation element
  •  ⇒ Rep. gr. 50 ; Removing and installing bracket for deformation element
  1. Wing bracket
  • ⇒ Rep. gr. 50 ; Removing and installing wing bracket

Volkswagen ID.4. Assembly overview  wing

Removing and installing wing

Special tools and workshop equipment required

  • setting gauge - 3371-

Removal and installation are described for left side of vehicle as an example.

Removing

  • Remove seal for plenum chamber cover ⇒ Rep. gr. 50 ; Removing and installing plenum chamber cover .
  • Remove plenum chamber cover at side ⇒ Rep. gr. 50 ; Removing and installing plenum chamber cover .
  • Remove headlight ⇒ Electrical system; Rep. gr. 94 ; Headlights; Removing and installing headlights .
  • Remove A-pillar trim ⇒ Rep. gr. 66 ; Removing and installing A-pillar trim .

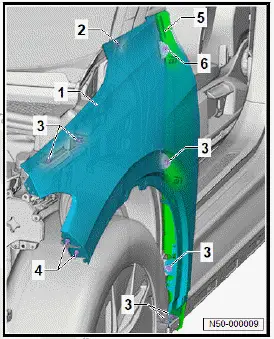

  • Unscrew bolt -2-.
  • Unscrew centre hex studs -4-.
  • Pull off end plate -5- in area of bolt -6-. Unscrew bolt -6- when doing so.
  • Remove wing -1-.

Volkswagen ID.4. Removing and installing wing

Installing

Install in reverse order of removal, observing the following:

If A-pillar has been renewed:

  • Insert pop rivet nuts -1- ⇒ Electronic parts catalogue (ETKA) .

Volkswagen ID.4. Removing and installing wing

All vehicles (continued)

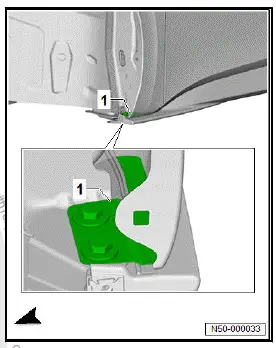

  • Wax threaded connection for side member -1- ⇒ Rep. gr. 00 ; General information, paint; Technical data; Corrosion protection of body parts, attachments and welded parts .

Volkswagen ID.4. Removing and installing wing

  • Align wing free of stress.
  • Verify gaps using setting gauge - 3371- . Observe ⇒ Rep. gr. 00 ; Gaps - front and ⇒ Rep. gr. 00 ; Gaps - centre when doing this.

Tightening torques

  • ⇒ Rep. gr. 50 ; Assembly overview - wing

Removing and installing end plate

Removal and installation are described for the left vehicle side as an example.

Removing

  • Remove door ⇒ Rep. gr. 57 ; Removing and installing door .
  • Remove front wheel housing liner ⇒ Rep. gr. 66 ; Removing and installing front wheel housing liner .

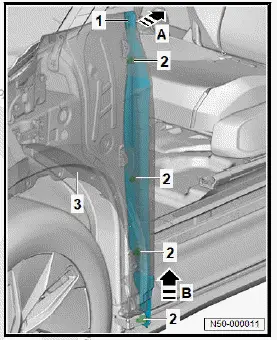

  • Release locking devices -2-.
  • Slight pull end plate -1- at top in direction of -arrow A- off wing -3-, and pull it out in direction of -arrow B-.

Volkswagen ID.4. Removing and installing end plate

Installing

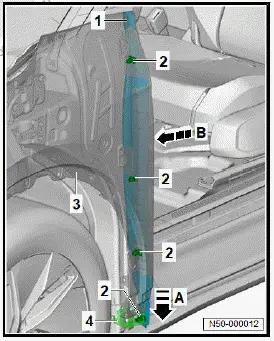

  • Insert end plate -1- in direction of -arrow a- at wing -3-.
  • Push end plate -1- in direction of -arrow B- against wing -3- until locking devices -2- engage.

Important

  • The lower locking device -2- must engage in wing bracket -4-.

Volkswagen ID.4. Removing and installing end plate

Continue installation in reverse order of removal.

Removing and installing wing bracket

Special tools and workshop equipment required

  • setting gauge - 3371-

Removal and installation are described for left side of vehicle as an example.

The design of the wing panel brace differs depending on the model.

Removing

  • Remove wing ⇒ Rep. gr. 50 ; Removing and installing wing .
  • Unscrew bolts -2-.
  • Remove wing bracket -1-.

Volkswagen ID.4. Removing and installing wing bracket

Installing

Install in reverse order of removal, observing the following:

  • Align wing free of stress.
  • Check gaps with setting gauge - 3371- , observing ⇒ Rep. gr. 00 ; front gaps and ⇒ Rep. gr. 00 ; centre gaps while doing so.

Tightening torques

  • ⇒ Rep. gr. 50 ; Assembly overview - wing

Removing and installing wing bracket

Special tools and workshop equipment required

  • setting gauge - 3371-

Removal and installation are described for left side of vehicle as an example.

The design of the wing bracket differs depending on the model.

Removing

  • Remove wing ⇒ Rep. gr. 50 ; Removing and installing wing .
  • Unscrew bolt -2-.
  • Remove for wing bracket -1-.

Volkswagen ID.4. Removing and installing wing bracket

Installing

Install in reverse order of removal, observing the following:

  • Align wing free of stress.
  • Verify gaps using setting gauge - 3371- . Observe ⇒ Rep. gr. 00 ; Gaps - front and ⇒ Rep. gr. 00 ; Gaps - centre when doing this.

Tightening torques

  • ⇒ Rep. gr. 50 ; Assembly overview - wing

Removing and installing bracket for deformation element

Special tools and workshop equipment required

  • setting gauge - 3371-

Removal and installation are described for left side of vehicle as an example.

The design of the deformation element bracket differs depending on the model.

Removing

  • Remove wing ⇒ Rep. gr. 50 ; Removing and installing wing .
  • Unscrew bolts -2-.
  • Remove bracket for deformation element -1-.

Volkswagen ID.4. Removing and installing bracket for deformation element

Installing

Install in reverse order of removal, observing the following:

  • Align wing free of stress.
  • Verify gaps using setting gauge - 3371- . Observe ⇒ Rep.gr. 00 ; Gaps - front and ⇒ Rep. gr. 00 ; Gaps - centre when doing this.

Tightening torques

  • ⇒ Rep. gr. 50 ; Assembly overview - wing
