Volkswagen ID.4 (E21) 2021-2025 Service Manual / Heating, air conditioning system / Technical data

Safety and repair instructions

Safety information

Observe safety information ⇒ Safety information and repair notes; Rep. gr. 00 ; Safety information .

Repair instructions

Observe repair instructions ⇒ Safety and repair instructions; Rep. gr. 00 ; Repair instructions .

General notes, R134a/R1234yf

Type plates

Type plate with capacities in kg for refrigerant and refrigerant oil

  1. Refrigerant oil designation
  2. Refrigerant designation
  3. Refrigerant capacity in kg

Volkswagen ID.4. General notes, R134a/R1234yf

General notes, R744

Type plates

Type plate with capacities in kg for refrigerant R744 and refrigerant oil

  1. Refrigerant oil designation
  2. Refrigerant designation
  3. Refrigerant capacity in kg

Volkswagen ID.4. General notes, R744

Technical data, R134a

Refrigerant capacities

Refrigerant oil capacities

1) ⇒ Electronic parts catalogue (ETKA) .

2) The correct quantity of refrigerant oil is contained in the replacement air conditioner compressor and corresponds to the total capacity.

Oil distribution

  • During operation of the air conditioner, the refrigerant oil in the air conditioner compressor prior to initial operation is distributed throughout the refrigerant circuit.
  • Distribution of the refrigerant oil in the refrigerant circuit depends on the last operating mode of the air conditioner when it was switched off, the ambient temperatures and so on.
  • Consequently, it is not possible to make a general statement about how the refrigerant oil is distributed within the refrigerant circuit.
  • Observe notes on renewing components of refrigerant circuit ⇒ General information, air conditioning systems with refrigerant R744; Rep. gr. 87 ; Renewing components or ⇒ General information - air conditioning systems with refrigerant R134a/R1234yf; Rep. gr. 87 ; Renewing components; Renewing components .

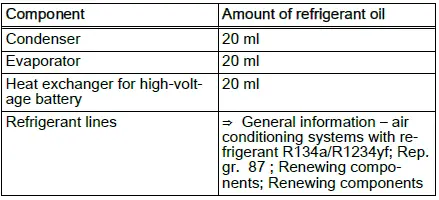

Refrigerant oil capacities after renewal of components

Important

  • Values from the table apply only if specified accordingly in the procedure for the renewal of components ⇒ General information - air conditioning systems with refrigerant R134a/ R1234yf; Rep. gr. 87 ; Renewing components; Renewing components .
  • Required refrigerant oil ⇒ Electronic parts catalogue (ETKA) .

Technical data, R1234yf

Refrigerant capacity

Refrigerant oil capacities

3) ⇒ Electronic parts catalogue (ETKA) .

4) The correct quantity of refrigerant oil is contained in the replacement air conditioner compressor and corresponds to the total capacity

Oil distribution

  • During operation of the air conditioner, the refrigerant oil in the air conditioner compressor prior to initial operation is distributed throughout the refrigerant circuit.
  • Distribution of the refrigerant oil in the refrigerant circuit depends on the last operating mode of the air conditioner when it was switched off, the ambient temperatures and so on.
  • Consequently, it is not possible to make a general statement about how the refrigerant oil is distributed within the refrigerant circuit.
  • Observe notes on renewing components of refrigerant circuit ⇒ General information, air conditioning systems with refrigerant R744; Rep. gr. 87 ; Renewing components or ⇒ General information - air conditioning systems with refrigerant R134a/R1234yf; Rep. gr. 87 ; Renewing components; Renewing components .

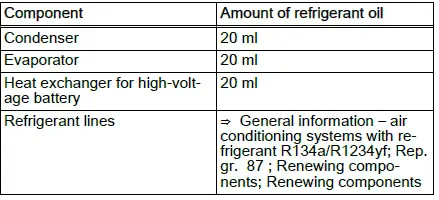

Refrigerant oil capacities after renewal of components

Important

  • Values from the table apply only if specified accordingly in the procedure for the renewal of components ⇒ General information - air conditioning systems with refrigerant R134a/ R1234yf; Rep. gr. 87 ; Renewing components; Renewing components .
  • Required refrigerant oil ⇒ Electronic parts catalogue (ETKA) .

Technical data, R744

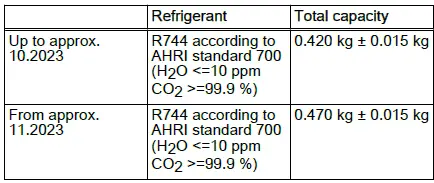

Refrigerant capacities

Refrigerant oil capacities

5) ⇒ Electronic parts catalogue (ETKA) .

6) The correct quantity of refrigerant oil is contained in the replacement air conditioner compressor and corresponds to the total capacity

Oil distribution

  • During operation of the air conditioner, the refrigerant oil in the air conditioner compressor prior to initial operation is distributed throughout the refrigerant circuit.
  • Distribution of the refrigerant oil in the refrigerant circuit depends on the last operating mode of the air conditioner when it was switched off, the ambient temperatures and so on.
  • Consequently, it is not possible to make a general statement about how the refrigerant oil is distributed within the refrigerant circuit.
  • Observe notes on renewing components of refrigerant circuit ⇒ General information, air conditioning systems with refrigerant R744; Rep. gr. 87 ; Renewing components or ⇒ General information - air conditioning systems with refrigerant R134a/R1234yf; Rep. gr. 87 ; Renewing components; Renewing components .

Electrical components

Access to diagnoses

  • 1 Open electrically actuated valves to drain, evacuate, charge or flush refrigerant circuit
  • 2 Air conditioner compressor run-in
  • 3 Adapt air conditioner compressor
  • 4 Addressing routine for refrigerant valves
  • 5 Renew heater and air conditioning system control unit - J979-
  • 6 Adapt flap limit stops of control motors
  1. Open electrically actuated valves to drain, evacuate, charge or flush refrigerant circuit
  • Diagnosis-compatible systems
  • 0008 - Air conditioning/heating system electronics [J979]
  • 0008 - Air conditioning/heating system electronics, functions
  • 0008 - Charge/evacuate/flush refrigerant circuit
  1. Air conditioner compressor run-in
  • Diagnosis-compatible systems
  • 0008 - Air conditioning/heating system electronics [J979]
  • 0008 - Air conditioning/heating system electronics, functions
  • 0008 - Air conditioner compressor run-in
  1. Adapt air conditioner compressor
  • Diagnosis-compatible systems
  • 0008 - Air conditioning/heating system electronics [J979]
  • 0008 - Air conditioning/heating system electronics, functions
  • 0008 - Adapt air conditioner compressor
  1. Addressing routine for refrigerant valves
  • Diagnosis-compatible systems
  • 0008 - Air conditioning/heating system electronics [J979]
  • 0008 - Air conditioning/heating system electronics, functions
  • 0008 - Automatic addressing routine
  1. Renew heater and air conditioning system control unit - J979-
  • Diagnosis-compatible systems
  • 0008 - Air conditioning/heating system electronics [J979]
  • 0008 - Air conditioning/heating system electronics, functions
  • 0008 - Renew control unit
  1. Adapt flap limit stops of control motors
  • Diagnosis-compatible systems
  • 0008 - Air conditioning/heating system electronics [J979]
  • 0008 - Air conditioning/heating system electronics, functions
  • 0008 - Basic setting
