Volkswagen ID.4: Overview of seat variants
Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, interior / Seat frames / Overview of seat variants

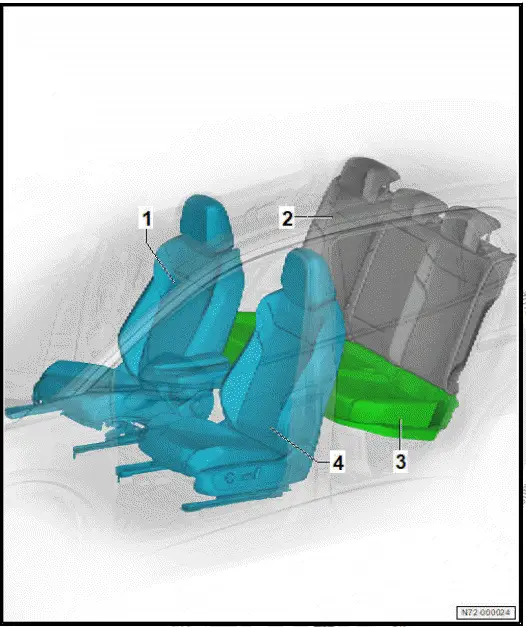

Overview of fitting locations - seat variants
The overview shows a left-hand drive vehicle as an example.
- Front passenger seat
- ⇒ Rep. gr. 72 ; Assembly overview - front seat
- ⇒ Rep. gr. 72 ; Assembly overview - front backrest
- ⇒ Rep. gr. 72 ; Assembly overview - seat pan
- ⇒ Rep. gr. 72 ; Removing and installing front seat
- Rear seat backrest
- ⇒ Rep. gr. 72 ; Assembly overview - rear seat backrest
- ⇒ Rep. gr. 72 ; Assembly overview - centre armrest
- ⇒ Rep. gr. 72 ; Removing and installing rear seat backrest
- Bench seat
- ⇒ Rep. gr. 72 ; Assembly overview - bench seat/individual seats
- ⇒ Rep. gr. 72 ; Removing and installing bench seat/individual seats
- Driver seat
- ⇒ Rep. gr. 72 ; Assembly overview - front seat
- ⇒ Rep. gr. 72 ; Assembly overview - front backrest
- ⇒ Rep. gr. 72 ; Assembly overview - seat pan
- ⇒ Rep. gr. 72 ; Removing and installing front seat
