Volkswagen ID.4: Rear door trims

Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, interior / Trim, insulation / Rear door trims

Assembly overview - rear door trim

Overview shown for left side of vehicle as an example

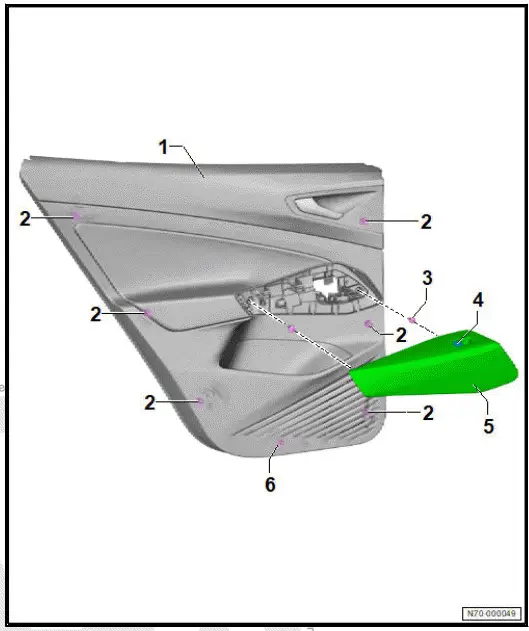

  1. Rear door trim
  • ⇒ Rep. gr. 70 ; Removing and installing rear door trim
  1. Clip
  • Qty. 6
  1. Bolt
  • Qty. 2
  • 4.5 Nm
  1. Rear window regulator button
  • Left-hand drive vehicles: with rear driver side window regulator button - E711-
  • Right-hand drive vehicles: with rear passenger side window regulator button - E713-
  • ⇒ Electrical system; Rep. gr. 96 ; Controls; Removing and installing window regulator switches/operating units in doors
  1. Button trim panel
  •  ⇒ Rep. gr. 70 ; Removing and installing button/switch trim
  1. Rotary clip

Volkswagen ID.4. Assembly overview - rear door trim

Removing and installing button trim

Special tools and workshop equipment required

  • wedge - T10383-

The rear driver side window regulator button - E711- and rear passenger side window regulator button - E713- will henceforth be referred to as "buttons".

Removal and installation are described for the left side of vehicle as an example.

Removing

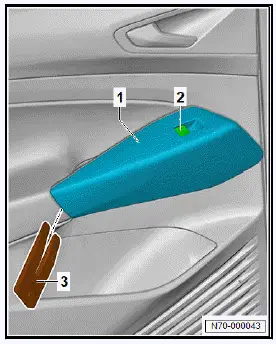

  • Unclip button trim -1- together with button -2- using wedge - T10383- -3-.

Volkswagen ID.4. Removing and installing button trim

  • Disconnect electrical connectors.

Installing

Install in reverse order of removal, observing the following:

  • Renew any damaged securing elements.

Removing and installing rear door trim

Special tools and workshop equipment required

  • Wedge - T10383-

Removal and installation are described for the left side of vehicle as an example.

Removing

  • Remove button trim ⇒ Rep. gr. 70 ; Removing and installing button trim .

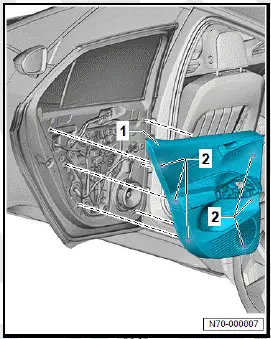

  • Unscrew bolts -1-.

Volkswagen ID.4. Removing and installing rear door trim

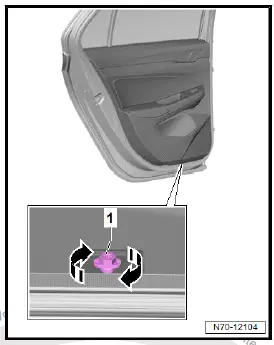

  • Turn rotary clip -1- by 90º in direction of -arrow-, and release it.

Volkswagen ID.4. Removing and installing rear door trim

  • Release clips -2- of rear door trim -1- using wedge - T10383- .
  • Pull rear door trim -1- upwards out of window slot inner seal.
  • Disconnect electrical connector.

Volkswagen ID.4. Removing and installing rear door trim

NOTICE

Risk of damage to the Bowden cable due to deformation.

  • Do not bend or kink the Bowden cable.
  • Detach Bowden cable -1-.

Volkswagen ID.4. Removing and installing rear door trim

Installing

Install in reverse order of removal, observing the following:

  • Renew any damaged securing elements.

NOTICE

Risk of damage to the locking mechanism.

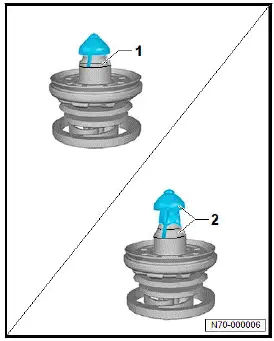

  • Always turn the locking mechanism from position -2- to position -1-.
  • The door trim can only be installed when the locking mechanism is in position -1-.
  • Insert clips into rear door trim.

Volkswagen ID.4. Removing and installing rear door trim

Tightening torques

  • ⇒ Rep. gr. 70 ; Assembly overview - rear door trim
