Volkswagen ID.4: Technical data

Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, exterior / Technical data

Safety information and repair notes

Safety information

Observe safety information ⇒ Safety information and repair notes; Rep. gr. 00 ; Safety information .

Repair instructions

Observe repair instructions ⇒ Safety and repair instructions; Rep. gr. 00 ; Repair instructions

Electrical components

Access to diagnoses

  • Renewing driver door control unit - J386- / front passenger door control unit - J387-
  • 2 Renewing rear driver side door control unit - J926- / rear passenger side door control unit - J927-
  • 3 Renewing roof system control unit - J1355-
  • 4 Adapting roof system control unit - J1355-
  • 5 Removing and installing windscreen
  • 6 Renewing trailer detector control unit
  1. Renewing driver door control unit - J386- / front passenger door control unit - J387-
  • 0042/0052 - Driver door electronics, functions/Front passenger door electronics, functions
  •  0042/0052 - Basic setting
  1. Renewing rear driver side door control unit - J926- / rear passenger side door control unit - J927-
  • 00BB/00BC - Rear driver side door electronics, functions/ Rear passenger side door electronics, functions
  • 00BB/00BC - Basic setting
  1. Renewing roof system control unit - J1355-
  • 00CA - Sliding sunroof adjustment control unit, functions
  •  00CA - Renew control unit
  1. Adapting roof system control unit - J1355-
  • 00CA - Sliding sunroof adjustment control unit, functions
  • 00CA - Control unit, basic setting
  1. Removing and installing windscreen Vehicles with control unit for head-up display - J898-
  • ⇒ Electrical system; Rep. gr. 90 ; Dash panel insert; Calibrating control unit for head-up display [J898] Calibrating front camera for driver assist systems - R242-
  • ⇒ Driver assist systems; Rep. gr. 98 ; Front camera for driver assist systems; Calibrating front camera for driver assist systems
  1. Renewing trailer detector control unit
  • 0069 - Trailer detector control unit, functions
  • 0069 - Renew trailer detector control unit

Technical data

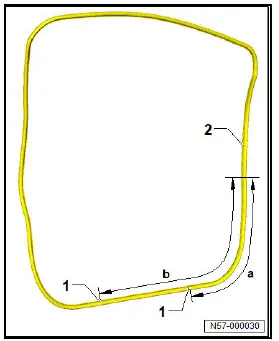

Dimensions of water drain holes in outer door seal

Rear door

  1. Water drain hole of outer door seal -1-
  • Dimension = 514 mm +-10 mm
  1. Water drain hole of outer door seal -1-
  • Dimension = 974 mm +-10 mm

Volkswagen ID.4. Dimensions of water drain holes in outer door seal

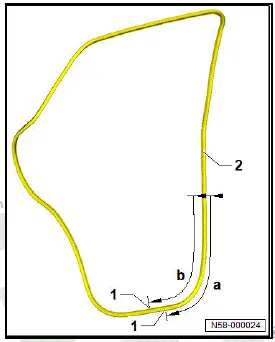

Rear door

  1. Water drain hole of outer door seal -1-
  • Dimension = 557 mm +-10 mm
  1. Water drain hole of outer door seal -1-
  • Dimension = 617 mm +-10 mm

Volkswagen ID.4. Dimensions of water drain holes in outer door seal

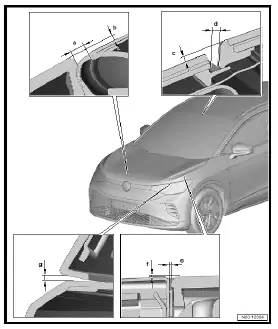

Gaps - front

Gaps/shut lines refer to specified areas.

Volkswagen ID.4. Gaps - front

  1. Gap between bonnet and bumper
  • Gap = 3.7 mm +- 0.7 mm
  1. Height difference, bonnet to bumper
  • Gap = 1.2 mm + 0.6 mm
  1. Height difference, windscreen to roof
  • Gap = 2.1 mm +- 0.8 mm
  1. Gap between windscreen and roof
  • Gap = 3.3 mm +- 0.5 mm
  1. Gap between wing and bumper
  • Gap = 0.5 mm + 0.5 mm
  1. Height difference, wing to bumper
  • Gap = 0.0 mm +- 0.5 mm
  1. Gap between headlight and bumper
  • Gap = 1.9 mm +- 0.5 mm

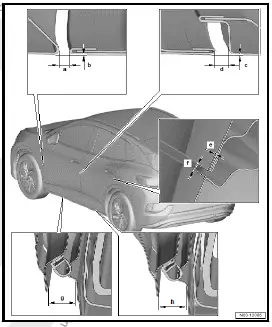

Gaps - centre

Volkswagen ID.4. Gaps - centre

Gaps/shut lines refer to specified areas.

  1. Gap between wing and front door
  • Gap = 3.5 mm +- 0.5 mm
  1. Height difference, wing to front door
  • Gap = 0.0 mm +- 0.1 mm
  1. Height difference, front door to rear door
  • Gap = 0.0 mm +- 0.5 mm
  1. Gap between front door and rear door
  • Gap = 4.4 mm +- 0.5 mm
  1. Height difference, rear door to side panel
  • Gap = 0.0 mm +- 0.5 mm
  1. Gap between rear door and side panel
  • Gap = 3.5 mm +- 0.5 mm
  1. Gap between front door and side member
  • Gap = 7.3 mm +- 1.0 mm
  1. Gap between rear door and side member
  • Gap = 7.5 mm +- 1.0 mm

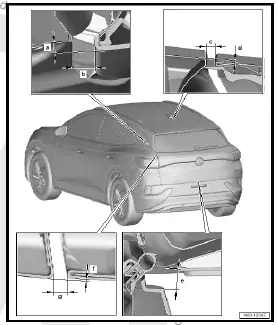

Gaps - rear

Volkswagen ID.4. Gaps - rear

Gaps/shut lines refer to specified areas.

  1. Height difference, C-pillar to rear spoiler
  • Gap = -1.6 mm +- 0.8 mm
  1. Gap between C-pillar and rear spoiler
  • Gap = 6.1 mm +- 0.8 mm
  1. Gap between roof and rear lid
  • Gap = 5.0 mm +- 0.5 mm
  1. Height difference, roof to rear lid
  • Gap = -1.2 mm +- 0.8 mm
  1. Gap between bumper and rear lid
  • Gap = 13.5 mm
  1. Height difference, side panel and rear lid
  • Gap = -1.0 mm +- 0.5 mm
  1. Gap between side panel and rear lid
  • Gap = 4.0 mm +- 0.5 mm

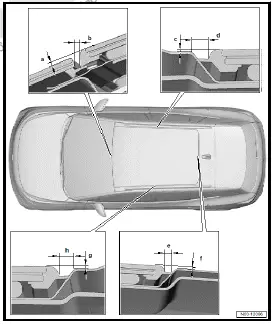

Gaps - roof

Volkswagen ID.4. Gaps - roof

Gaps/shut lines refer to specified areas.

  1. Height difference, windscreen to glass panel
  • Gap = 2.1 mm +- 0.8 mm
  1. Gap between windscreen and glass panel
  • Gap = 3.3 mm +- 0.5 mm
  1. Height difference, roof to glass panel
  • Gap = 0.4 mm
  1. Gap between roof and glass panel
  • Gap = 4.8 mm
  1. Gap between roof and glass panel
  • Gap = 4.8 mm
  1. Height difference, roof to glass panel
  • Gap = 0.8 mm +- 1.0 mm
  1. Height difference, roof to glass panel
  • Gap = 0.4 mm
  1. Gap between roof and glass panel
  • Gap = 4.8 mm
