Volkswagen ID.4: Side airbags

Volkswagen ID.4 (E21) 2021-2025 Service Manual / General body repairs, interior / Passenger protection / Side airbags

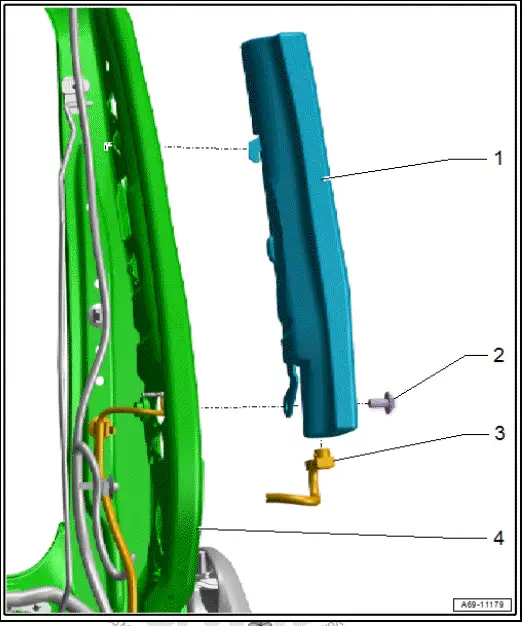

Assembly overview  front side airbag, outer side

The overview is shown for the left side of vehicle as an example.

  1. Front side airbag
  • With side airbag igniter on driver side - N199- or side airbag igniter on front passenger side - N200-
  • ⇒ "8.3 Removing and installing front outer side airbag"
  1. Bolt
  • Renew after removing
  • 8 Nm
  1. Electrical connector
  2. Front seat frame

Volkswagen ID.4. Assembly overview  front side airbag, outer side

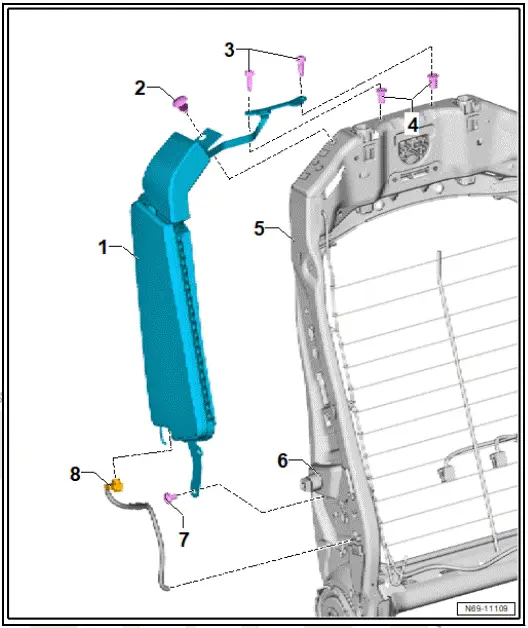

Assembly overview - front side airbag, inner side

Overview shows a left-hand drive vehicle as an example

  1. Central airbag
  • With igniter for central airbag for occupant collision protection, driver side - N737-
  • Fitted on driver side
  • ⇒ Rep. gr. 69 ; Removing and installing front side airbag, inner side
  1. Clip
  • If damaged, central airbag must be renewed.
  1. Bolt
  • Qty. 2
  • 8 Nm
  1. Pop rivet nut
  • Qty. 2
  1. Front seat frame
  2. Armrest holder
  3. Bolt
  • Renew after removing
  • 8 Nm
  1. Electrical connector

Volkswagen ID.4. Assembly overview - front side airbag, inner side

Removing and installing front outer side airbag

Side airbag with side airbag igniter on driver side - N199- or side airbag igniter on front passenger side - N200- are referred to hereafter as "side airbag".

Removal and installation are described for the left side of vehicle as an example.

Removing

  • Disconnect battery earth cable ⇒ Electrical system; Rep.

    gr. 27 ; Battery; Disconnecting and connecting battery .

  • Remove backrest padding in area of side airbag ⇒ Rep.

    gr. 74 ; Separating backrest cover from backrest padding .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

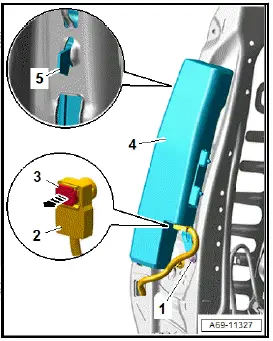

  • Discharge static electricity by briefly touching door striker plate.
  • Release connector lock -3- in direction of -arrow-.
  • Disconnect electrical connector -2-.
  • Unscrew bolt -1-.
  • Detach side airbag -4- from hook -5-, and remove it.

Volkswagen ID.4. Removing and installing front outer side airbag

WARNING

Risk of injury due to unintended deployment of the airbag unit.

  • Place the airbag unit with the airbag facing upwards.
  • Place side airbag aside.

Installing

Install in reverse order of removal, observing the following:

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

  • Discharge static electricity by briefly touching door striker plate.
  • Connect electrical connector -1- in direction of -arrow A- until it engages audibly.
  • Engage connector lock -2- in direction of -arrow B-.
  • Make sure that electrical wire is not trapped.

Volkswagen ID.4. Removing and installing front outer side airbag

  • Connect battery earth cable ⇒ Electrical system; Rep.

    gr. 27 ; Battery; Disconnecting and connecting battery .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

  • Stay as far back as possible from pyrotechnic components when switching on the ignition
  • Switch on ignition.
  • Read and clear event memory using ⇒ Vehicle diagnostic tester.

Tightening torques

  • ⇒ "8.1 Assembly overview  front side airbag, outer side",

Removing and installing front inner side airbag

Special tools and workshop equipment required

  • release tool - T10236-

Removing

Side airbag with igniter for central airbag for occupant collision protection, driver side - N737- will henceforth be referred to as "side airbag".

  • Disconnect battery earth cable ⇒ Electrical system; Rep.

    gr. 27 ; Battery; Disconnecting and connecting battery .

  • Remove cover and padding in area of backrest ⇒ Rep.

    gr. 74 ; Removing and installing backrest cover and padding .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

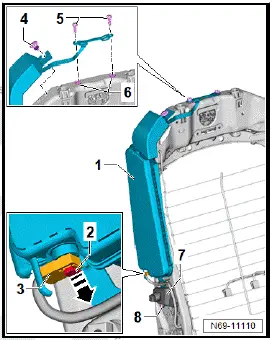

  • Discharge static electricity by briefly touching door striker plate.
  • Release connector lock -2- in direction of -arrow-.
  • Disconnect electrical connector -3-.
  • Unscrew bolts -5-.

Important

  • Removed bolts -5- must be coated with locking fluid. Locking fluid ⇒ Electronic parts catalogue (ETKA) .
  • Remove clip -4- using release tool - T10236- .
  • Unscrew bolt -8-.
  • Guide side airbag -1- out of armrest holder -7-, and remove it.

Volkswagen ID.4. Removing and installing front inner side airbag

WARNING

Risk of injury due to unintended deployment of the airbag unit.

  • Place the airbag unit with the airbag facing upwards.
  • Place side airbag aside

Installing

Install in reverse order of removal, observing the following:

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

  • Discharge static electricity by briefly touching door striker plate.
  • Connect electrical connector -1- in direction of -arrow A- until it engages audibly.
  • Engage connector lock -2- in direction of -arrow B-.
  • Make sure that electrical wire is not trapped.

Volkswagen ID.4. Removing and installing front inner side airbag

  • Connect battery earth cable ⇒ Electrical system; Rep.

    gr. 27 ; Battery; Disconnecting and connecting battery .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

  • Stay as far back as possible from pyrotechnic components when switching on the ignition.
  • Switch on ignition.
  • Read and clear event memory using ⇒ Vehicle diagnostic tester.

Tightening torques
